Metrics API

Metrics can be used to track how Watchtower behaves over time.

To use this feature, you have to set an API token and enable the metrics API, as well as creating a port mapping for your container for port 8080.

Note

You can enable both the metrics API and the update API simultaneously by using both --http-api-metrics and --http-api-update flags.

Warning

Enabling the metrics API with port mappings will automatically disable Watchtower's self-update functionality to prevent port conflicts during container recreation. See Updating Watchtower for more details.

The metrics API endpoint is /v1/metrics and provides Prometheus-compatible metrics. This is separate from the /v1/update endpoint which triggers updates and returns JSON results.

Note

The /v1/metrics endpoint only accepts GET requests. Requests with other HTTP methods will receive a 405 Method Not Allowed response.

Available Metrics

Name	Type	Description
watchtower_containers_scanned	Gauge	Number of containers scanned for changes during the last scan
watchtower_containers_updated	Gauge	Number of containers updated during the last scan
watchtower_containers_failed	Gauge	Number of containers where update failed during the last scan
watchtower_containers_restarted_total	Counter	Number of containers restarted due to linked dependencies since watchtower started
watchtower_containers_skipped	Gauge	Number of containers skipped during the last scan
watchtower_scans_total	Counter	Number of scans since watchtower started
watchtower_scans_skipped_total	Counter	Number of skipped scans since watchtower started

Example Prometheus scrape_config

scrape_configs:
  - job_name: watchtower
    scrape_interval: 15s
    metrics_path: /v1/metrics
    bearer_token: demotoken
    static_configs:
      - targets:
        - 'watchtower:8080'

Replace demotoken with the Bearer token you have set accordingly.

Demo

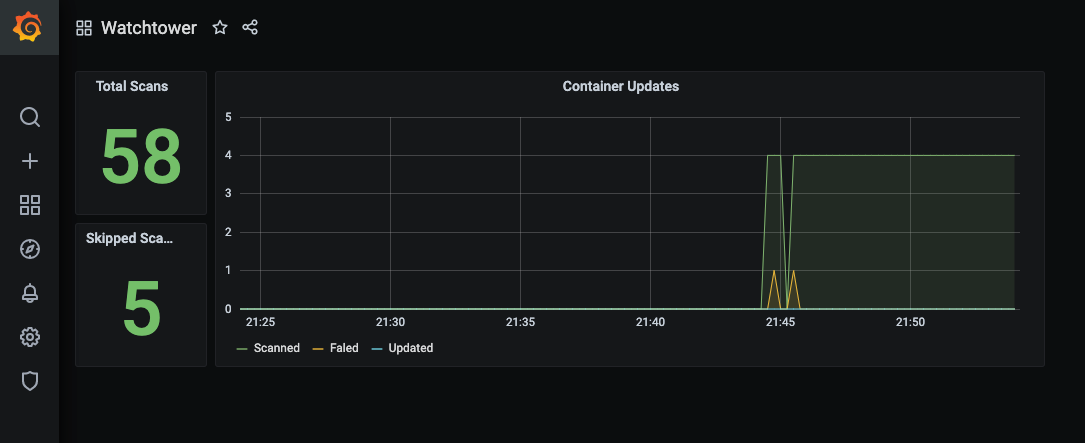

The repository contains a demo with prometheus and grafana, available through /examples/metrics/docker-compose.yml. This demo is preconfigured with a dashboard, which will look something like this:
